UI surfaces

Every chrome surface Vendo renders reads its colors, typography, radius, density, and motion from your VendoTheme tokens. To see them on your own tools and your own brand, run vendo init and follow the quickstart.

Vendo’s built-in agent is in beta. Most teams should bring their own agent and use Vendo’s tools and surfaces from their existing loop; the embeds render Vendo inside that chat instead of the chrome below.

The client mount

vendo init never writes a client file. It prints one paste at the end of the run, naming your layout file and the exact lines. That paste is what connects your pages to the wire, and vendo doctor fails until it lands. The wrapped child differs by router.

// app/layout.tsx — App Router
import { VendoProvider } from "@vendoai/vendo/react";

// then wrap the app:
<VendoProvider baseUrl="/api/vendo">{children}</VendoProvider>

// pages/_app.tsx — Pages Router
import { VendoProvider } from "@vendoai/vendo/react";

// then wrap the app:
<VendoProvider baseUrl="/api/vendo"><Component {...pageProps} /></VendoProvider>

baseUrl is where the wire is mounted, path prefix included. A deployment served under /maple passes baseUrl="/maple/api/vendo". <VendoProvider> renders nothing by itself. Add <VendoOverlay /> inside it for the launcher pill and panel, or render one of the surfaces below. Registering host components? Put the registry and the provider in one "use client" file and mount that in your layout instead. This file is yours; init does not generate it.

// vendo/vendo-root.tsx — yours
"use client";

import { VendoOverlay, VendoProvider } from "@vendoai/vendo/react";
import type { ReactNode } from "react";
import { SpendingDonut } from "@/components/SpendingDonut";
import theme from "../.vendo/theme.json";
import type { VendoTheme } from "@vendoai/vendo";

const registry = { SpendingDonut: { component: SpendingDonut, description: "Spending by category." } };

export function VendoRoot({ children }: { children: ReactNode }) {
  return (
    <VendoProvider baseUrl="/api/vendo" components={registry} theme={theme as VendoTheme}>
      {children}
      <VendoOverlay />
    </VendoProvider>
  );
}

Keep the registry inside a "use client" file. Declaring it in a Server Component layout and passing it to the provider crashes React Server Components serialization once the registry holds real components — every page 500s.

The theme prop applies the brand init captured. The cast narrows TypeScript’s widened JSON-module string literals.

Overlay

The default drop-in: a themed launcher pill that opens a floating conversation overlay over your product, becoming an Intercom-style full-bleed takeover on phones.

Wire it in the client mount above; control it programmatically with useVendoOverlay. Conversations survive: a page reload resumes the one you were in (the overlay remembers it per browser and deployment, and a mid-stream reply picks back up), and the header’s previous-conversations button lists your earlier threads — pick one to resume it, or cancel to stay. New conversation still starts fresh and clears the remembered one; a remembered conversation that no longer exists falls back to a fresh start on its own.

Tune it

VendoOverlay comes from @vendoai/vendo/react, or from @vendoai/ui/chrome directly. The launcher anchors to any viewport corner (launcher="bottom-left", "top-right", …), and when your own UI already lives in that corner, nudge the whole cluster inward with the object form — launcher={{ position: "bottom-right", offset: { x: 0, y: 72 } }}. Set launcher="none" and drive it yourself with the useVendoOverlay hook. For a different surface entirely, swap <VendoOverlay /> inside your wrapper for your own composition, or for <VendoThread />. That one lives in @vendoai/ui/chrome and needs @vendoai/ui as a direct dependency. <VendoOverlay /> is the only standalone chrome surface @vendoai/vendo/react re-exports; the BYO embeds (<VendoToolResult>, <VendoAppEmbed>, <VendoApprovalEmbed>) and every hook come from there too.

Command palette

The same surface one keystroke away: ⌘K opens the conversation overlay in its compact palette form, with host-registered commands on the chip strip. If your product already owns ⌘K in a focused input, Vendo stays out of the way.

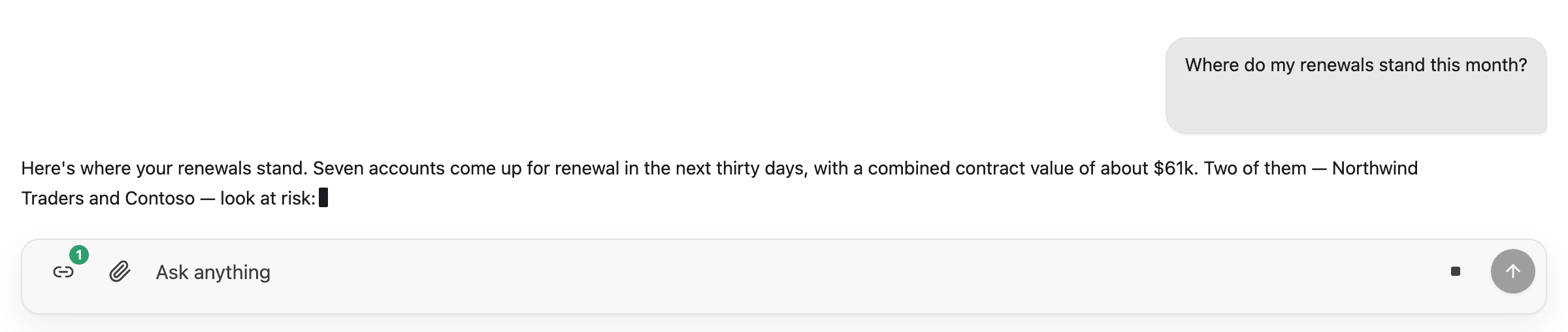

Thread

The bare conversation surface: composer, streaming replies, tool beats, approval cards, connect cards, and generated views arriving inline. Use it when you want the conversation embedded in your own layout instead of an overlay.

Building a custom thread instead? The same wire is available headless; see Headless hooks.

Generated views

When the agent builds UI, the view streams into the transcript as it forms (skeleton first, then live pieces) and lands as an interactive component, not a screenshot.

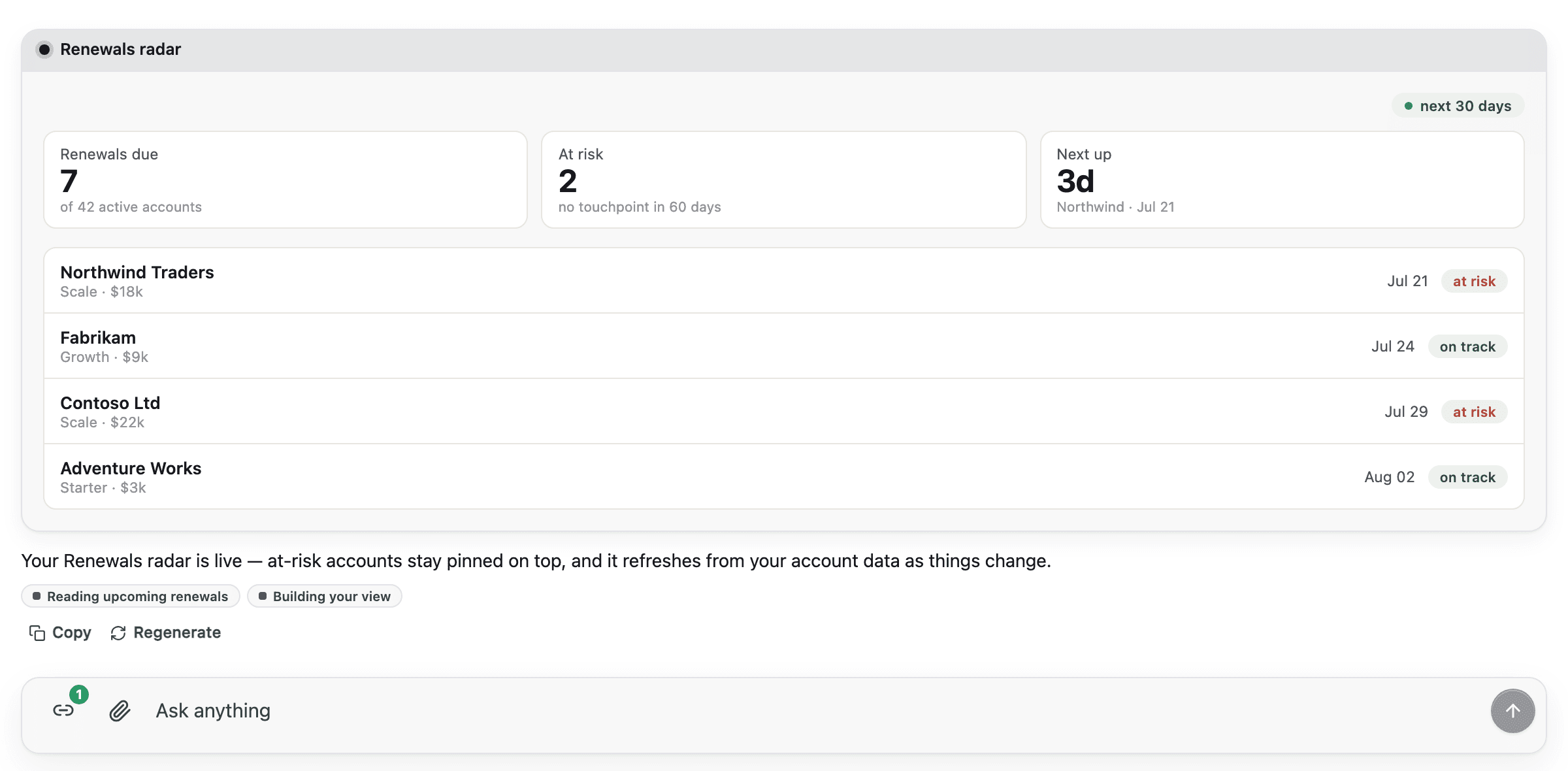

A generated view rendered inline in the Vendo thread — Ask for a view and watch it form: the finished Renewals radar is interactive.

See Generated UI and apps for what a view can do and who owns it.

Approvals

A write action parks the turn on an in-thread approval card showing the exact request. Approve it and the same turn resumes: the card morphs into a toast, the tool runs, and the agent confirms.

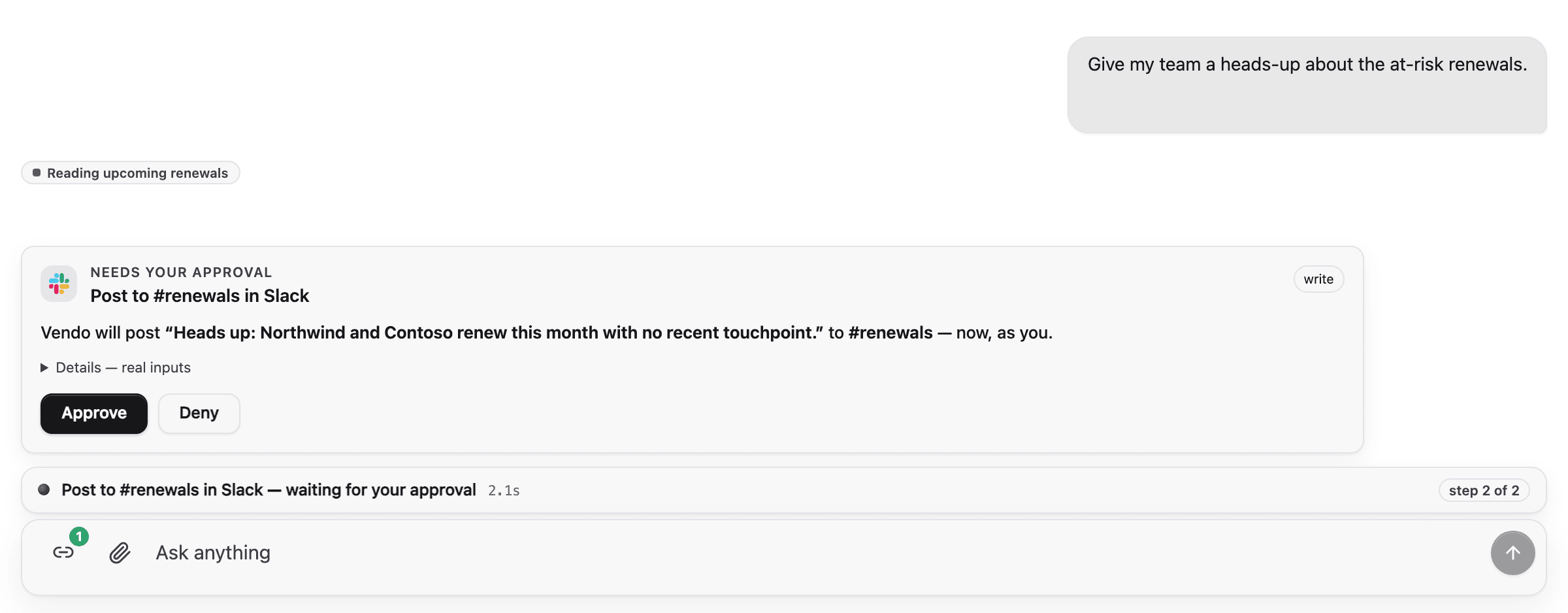

Vendo approval card pausing a turn on a Slack post — Pending → approved → resumed: press Approve and the turn continues.

The decision itself (policy, grants, risk) is server-side; see Tools and safety. When a person presses a button inside a generated view and that press parks on the guard, the confirmation moment shows up as a centered modal over the page — the same ask the thread card raises, at hero size. Approve or Deny spends the decision. Esc and the scrim close the modal but do not decide, so a dismissed ask stays pending and comes back from the badge or the next press. Presses queue: pressing Send on two rows raises two approvals, and exactly one modal is on screen at a time. The next one presents itself once the current one leaves. An ask settled on another surface (the thread, another tab) never gets a turn just to say it was already handled. The modal is auto-mounted everywhere Vendo renders a screen the user can press into: VendoSlot, in-thread app cards and the workspace stage they expand onto, the BYO chat embeds, and mounted remix forks. Nothing to wire. Custom surfaces that render a TreeView, AppFrame, or VendoSlot themselves pass an onParked prop to receive parked presses and can mount the modal with the useApprovalModal hook.

import { AppFrame, useApprovalModal } from "@vendoai/ui/chrome";

function MyStage({ surface, components }) {
  const approval = useApprovalModal();
  return (
    <>
      <AppFrame surface={surface} components={components} onParked={approval.onParked} />
      {approval.modal}
    </>
  );
}

Tool labels

Shipped chrome renders a tool chip every time the agent calls a tool, and an approval card whenever a call needs the user’s sign-off. The wire only carries the raw tool id, the risk, and the arguments; no friendly name, description, or arg formatting reaches the client. Chrome humanizes at the render site so end users never read a raw slug, a lifecycle string, or raw JSON.

Default fallback

Without any configuration, chrome prettifies the raw id and args:

host_email_send renders as “Email send”.
gmail_GMAIL_CREATE_EMAIL_DRAFT renders as “Gmail create email draft”.
Object arguments render as a Key: value preview in the approval card. Non-object args fall back to the server-formatted input preview. The tool chip itself shows only the humanized label, never an argument summary.
Consecutive identical chips (same tool, same args) collapse into one entry with an ×N count.
The chip’s spinner, check, or error icon carries lifecycle state; no output-available or Tool: text ever renders.
The in-thread approval card no longer prints a fabricated context byline (the live conversation is already the context). Standalone and queue approval cards render their real server-provided venue and app context; neither surface displays principal or presence as separate fields.

The fallback is enough for demos and internal tools. Pass friendly metadata when you want your own copy for user-facing surfaces.

Pass friendly metadata to VendoProvider

VendoProvider accepts an optional tools prop keyed by tool name. Every field is optional. Missing fields fall through to the default fallback.

"use client";

import { VendoProvider, type ToolMetaMap } from "@vendoai/vendo/react";

const tools: ToolMetaMap = {
  host_email_send: {
    label: "Send email",
    description: "Send a message from your connected inbox.",
  },
  host_invoice_create: {
    label: "Create invoice",
    description: "Draft a new invoice for a customer.",
  },
};

export function Providers({ children }: { children: React.ReactNode }) {
  return <VendoProvider tools={tools}>{children}</VendoProvider>;
}

Field	Purpose
`label`	Short display name shown on the tool chip and as the approval card title.
`description`	One-line description shown under the approval card title.
`formatField(key, value)`	Display formatting for one approval-card field, e.g. integer cents as `$500.00`. Return `undefined` to keep the raw value. Display-only: the raw args still drive the decision hash and the exact-input grant.

tools is additive and UI-side. It does not change the wire, the tool descriptor, or guard behavior: a call still routes through the same policy, grant, and approval decision described in Tools and safety.

Read metadata from your own chrome

useVendoTools() exposes the same ToolMetaMap for custom surfaces built on top of the headless hooks. The hook is provider-optional and returns an empty map when called outside VendoProvider, so standalone components degrade to the formatting fallback.

"use client";

import { useVendoTools } from "@vendoai/vendo/react";

export function ToolLabel({ name }: { name: string }) {
  const tools = useVendoTools();
  return <span>{tools[name]?.label ?? name}</span>;
}

Slot

A placeholder in your product that users can fill with their own generated view. Empty, it shows a quiet ghost with a “Design a view” call to action; filled, it renders the pinned view; broken, it falls back to your original markup, never a blank hole.

Remixable surfaces

Wrap a component of your own product to make it forkable:

import { Remixable } from "@vendoai/ui/chrome";

<Remixable>
  <RentRollTable units={units} />
</Remixable>

At rest a small muted ✦ sits in the element’s top-right corner. Hovering (or tabbing into) the element blooms it in place into a ✦ Remix pill, held open briefly so the cursor can travel to it. Clicking forks the component the engine captured at sync time — a deterministic copy, no model call — and the user’s fork renders in place of the wrapped element, sandboxed, for that user only. On a remixed surface the pill opens a small management popover (status, open in panel, revert). The bloom snaps under prefers-reduced-motion. Add the review flag (<Remixable review>) for components whose remixes a host reviewer must approve: the owner keeps seeing the original until approval, and the approved version then renders in place natively. See Host components for capture rules and the review flow.

Embeds for your own agent’s chat

If your product keeps its own agent loop and spreads in the guarded tool pack, three embed components render Vendo inline in that chat instead of the chrome above. See Embeds and envelopes for the envelope contract, the three components, and their props.

Theming

Every component above re-themes from one token file. Extract it with vendo init, or hand-edit .vendo/theme.json. See Theming for the full token reference.
